rqt Plugin Model

Within a Component, a rqt Plugin is represented by a GenericDomainModel with the following Attributes

Attributes	Value	Description
Type	Plugin
Domain	rqt

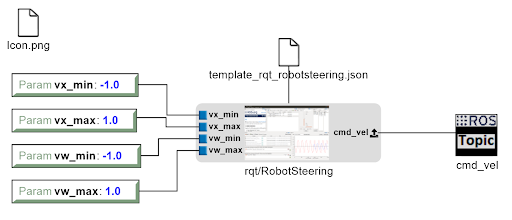

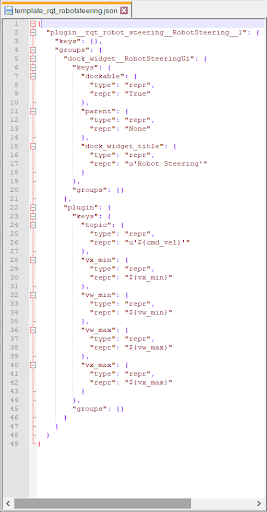

… and a connected template file Resource as shown below.

---

A rqt Plugin Model may contain the following elements:

• ROS Topic Publisher/Subscriber
• ROS Service Server/Client
• ROS Action Client/Server
• URDF Link Port
• Parameter
